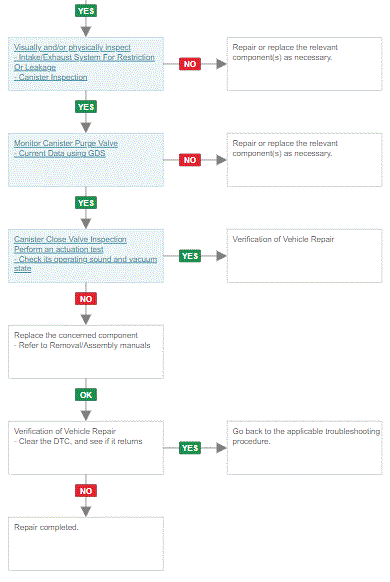

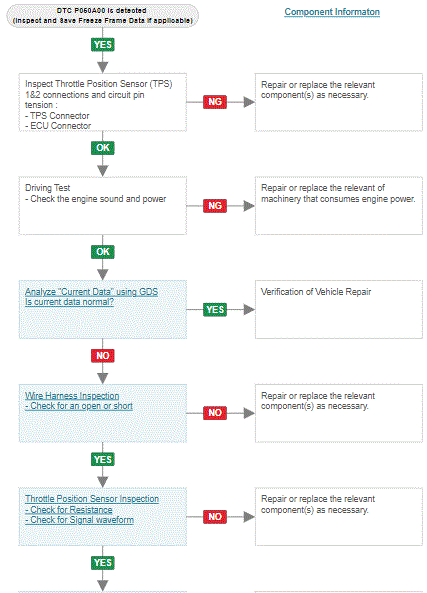

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
Replace the throttle body assembly or Engine Control Module (ECM). Then initialize the throttle position and perform the learning process again. Clear the previous TPS learn value with the GDS.
