Home >> Genesis >> 2021 >> GV80 2.5T Advanced, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (6 Of 6) >> DTC P2BF0-F0: Fuel Control System 'B' Too Lean Bank 1 >> Troubleshooting >> Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Diagnostic Flowchart

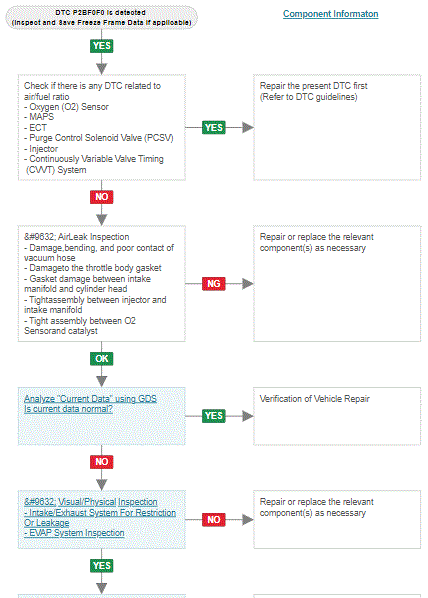

Fig 1: 1 Of 2
G14872475Courtesy of HYUNDAI MOTOR AMERICA

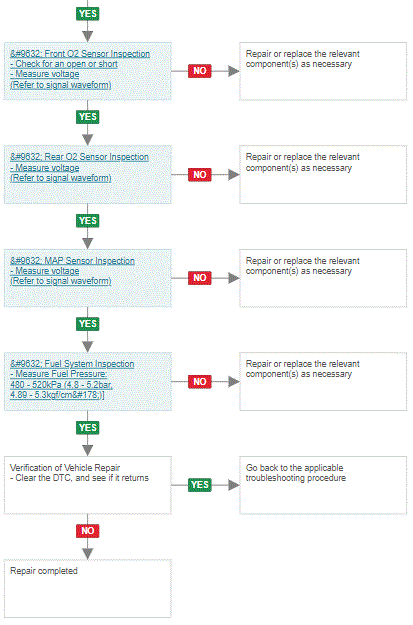

Fig 2: 2 Of 2
G00628891Courtesy of HYUNDAI MOTOR AMERICA
