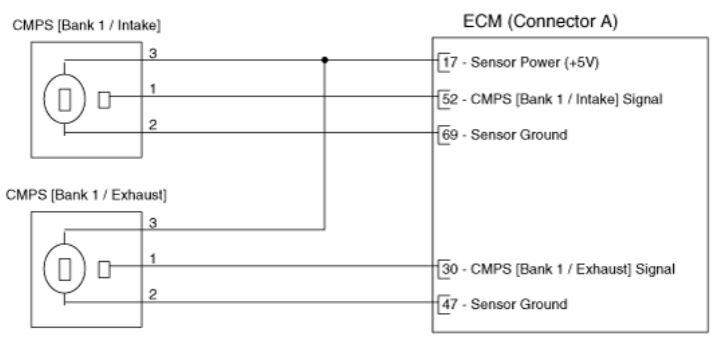

Camshaft Position Sensor (CMPS) [Bank 1]: Notes

WARNING: This page is about a different variant/trim than selected.
G14728672Courtesy of HYUNDAI MOTOR AMERICA
