Repair Procedures: Replacement
NOTE:
- When installing the belt, make sure not to damage the retractor.
- Put on gloves to prevent hand injuries.
- Remove the second row seat cushion cover [LH].
(Refer to Rear Seat - "REAR SEAT CUSHION COVER ")
- Remove the second row seat back cover [LH].
(Refer to Rear Seat - "REAR SEAT BACK COVER ")

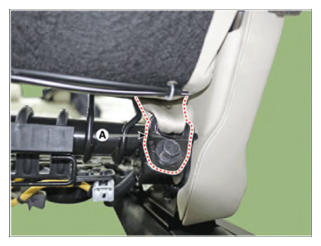

- Loosen the mounting bolt, remove the rear seat center seat belt (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

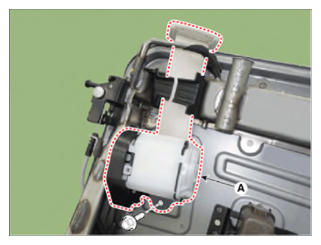

- Loosen the mounting nut and remove the rear center seat belt retractor (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
