Current Data Inspection

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON".
  4. Monitor following parameters in "Current Data" with GDS.

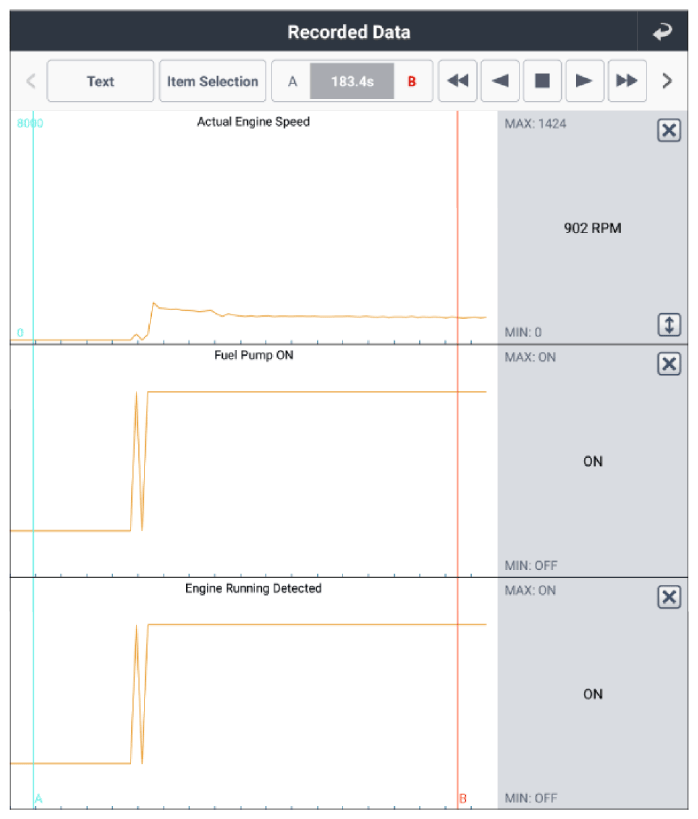

    Specification:  Refer to Figure below

    G14720130Courtesy of HYUNDAI MOTOR AMERICA
