Service Adjustment Procedure

Information

• The ATF level check is not normally required during scheduled services. If an oil leak is found, perform the oil level check procedure after repairs are completed.

1. Start the engine. (Don't step on brake and accelerator simultaneously).
   NOTE:

   • When checking the oil level, be careful not to allow dust, foreign materials, etc. to enter the fill hole.
2. Confirm that the temperature of the A/T oil temperature sensor is 50~60°C (122~140°F) with the diagnostic tool.
3. Shift the shift lever slowly from "P" to"D" to "P" at idle. Repeat one time.

   Shift the select lever to "N".

   NOTE:

   • Keep each shift position for more than 2 seconds.

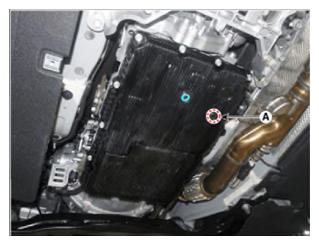

4. Lift the vehicle, then remove the oil level check plug (A) from the valve body cover.
   NOTE:

   • At this time, the vehicle must be on level ground.

   Courtesy of HYUNDAI MOTOR AMERICA

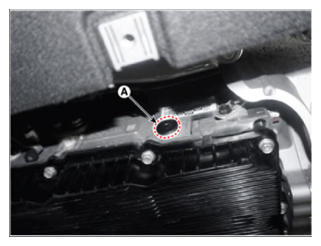

5. If there is no oil drain or the amount of drained oil is very low (within 20cc), add ATF SP-IV-RR 650cc to the ATF injection hole (A).
   NOTE:

   • If oil starts to overflow from the oil level check plug, you must stop adding oil
   • Install the oil injection plug gasket with new one.

   Oil injection plug tightening torque:

   33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 16.6 - 24.6 - 31.8 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

6. If the oil flows out of the oil level check plug in a thin steady stream, the level is normal.

   Then finish the procedure and tighten the oil level check plug.

   Information

   • Oil level check method (for excess or shortage)
     • Excess: The quantity of drained oil exceeds 500cc per minute. (Let oil flow until oil stream becomes thin)
     • Shortage: If there is no drain after adding 650cc of ATF. (Add more ATF oil until oil starts to drain)
   • If there is no damage at the automatic transmission and the oil cooler, the oil cooler hose, transmission case, valve body tightening state are normal, ATF must drip out after performing 1 to 6 procedures above. If the oil doesn't drip out, inspect the automatic transmission assembly.
   NOTE:

   • Replace the gasket before reinstalling the oil level check plug.

   Oil level check plug tightening torque:

   22.6 - 24.5 N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb-ft)

7. After ATF level check or exchange, be sure to remove ATF from outside automatic transmission.

   (Must make sure to remove the residual ATF between automatic transmission case and valve body cover.)

8. Put down the vehicle with the lift.
