Genesis
>>
2021
>>
GV80 2.5T, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P0091-11: Fuel Pressure Regulator 1 Control Circuit Low
>>
Troubleshooting
>>

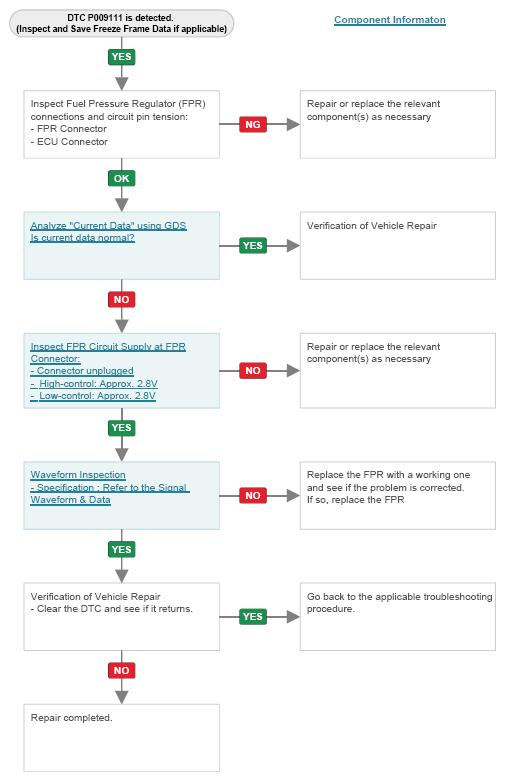

Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
