BCW Ecu

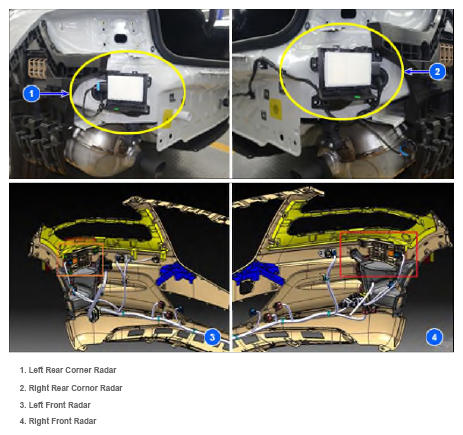

G14852809Courtesy of HYUNDAI MOTOR AMERICA

The BSW (=Blind-Spot Collision Warning) prevents collision by measuring the distance and speed of an object in the blind spots using the blind spot detectors installed at the rearside of the vehicle. It warns the driver (though visual, audio, and tangible alarm) when a rear vehicle coming from the right enters one of the driver's blind spots after computing the possibilities of a collision with the vehicle that attempts to change a lane coming from behind.

The BSW system exchanges information regarding distance from and speed of the upcoming vehicle via reciprocal CAN communication with the radio wave radar installed at the back of the vehicle.
