Fuel Rail Pressure Sensor (RPS)

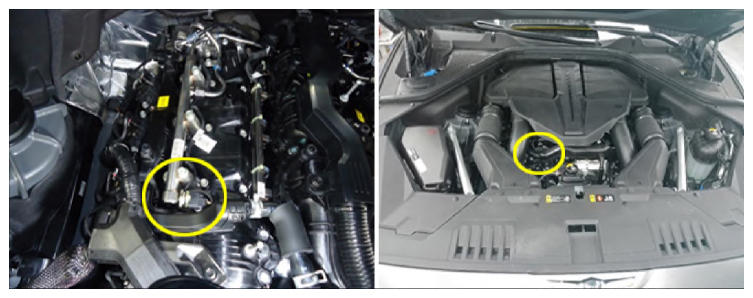

G14853533Courtesy of HYUNDAI MOTOR AMERICA

A fuel Rail Pressure Sensor (RPS) is mounted to the fuel rail and it senses fuel rail pressure.

The Gasoline Direct Injection (GDI) engine Electronic Control Unit (ECU) operates a fuel pressure control valve with the signals from the fuel RPS to control optimized RPM and rail pressure.
