Engine Control System Diagnosis - 3.5L (8 Of 9)
>>
DTC P2240-00: O2 Sensor Positive Current Control Circuit/Open Bank 2 Sensor 1
>>
Troubleshooting
>>

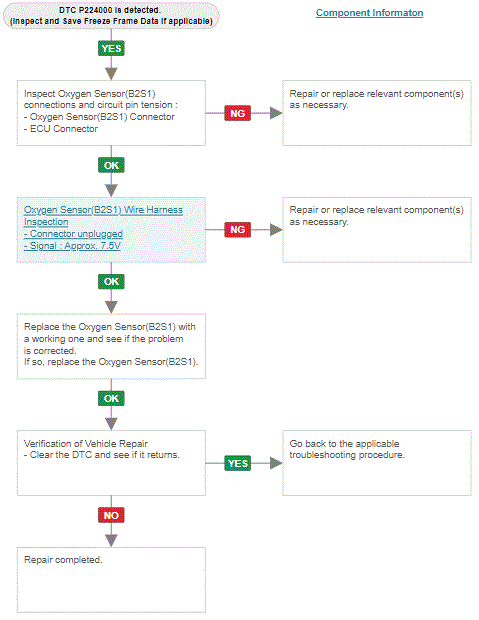

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
