Engine Performance
>>
System
>>
Engine Control System Diagnosis - 3.5L (8 Of 9)
>>
DTC P2251-00: O2 Sensor Negative Current Control Circuit/Open Bank 1 Sensor 1
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

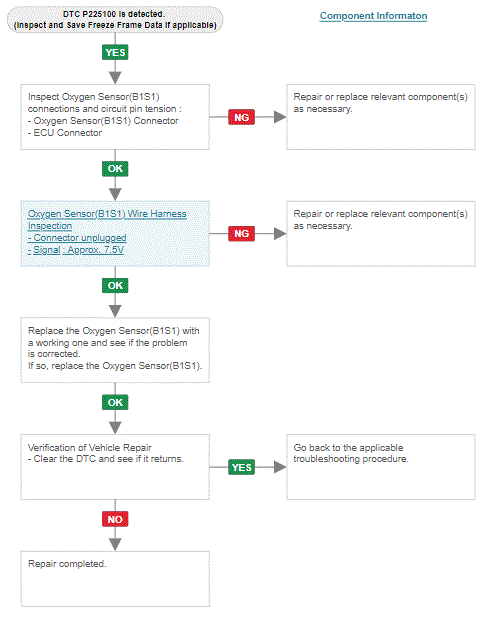

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
