Engine Control System Diagnosis - 3.5L (9 Of 9)
>>
DTC U015C-00: Lost Communication With Automated Driving System Control Module 'A'
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart

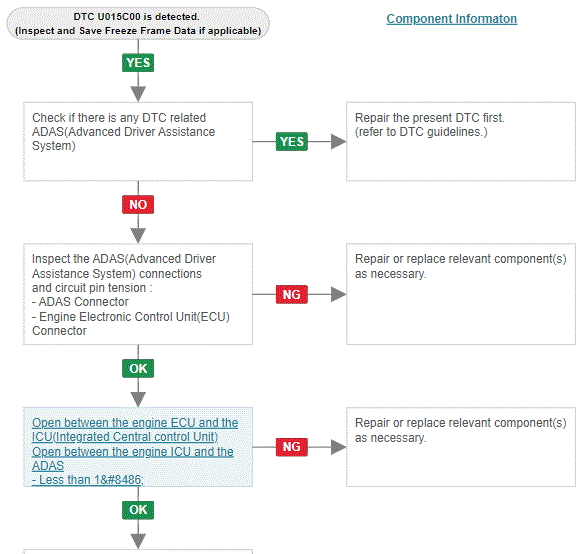

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

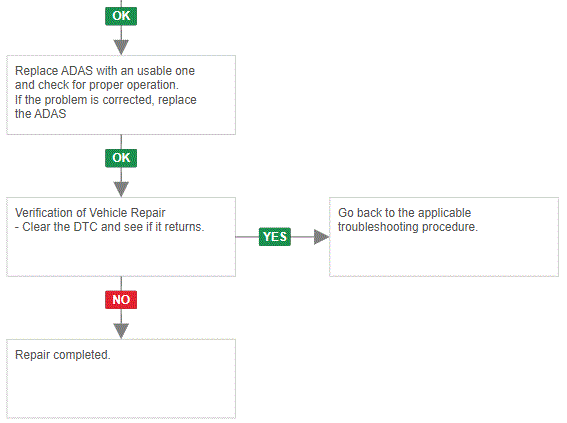

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
