Genesis
>>
2021
>>
GV80 3.5T Advanced+
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Control System Diagnosis - 3.5L (6 Of 9)
>>
DTC P0605-00: Internal Control Module Read Only Memory (ROM) Error
>>
Troubleshooting
>>

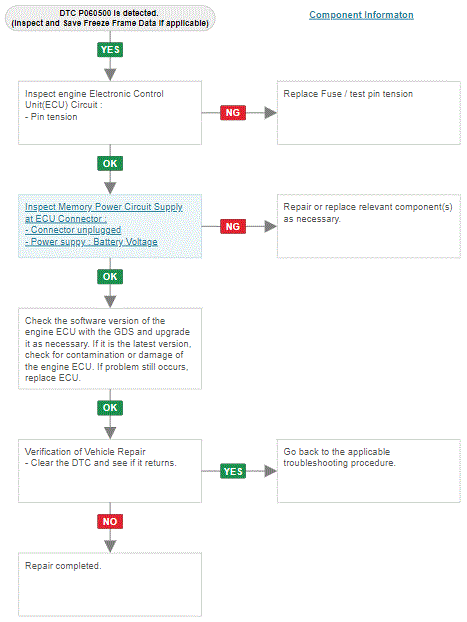

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
