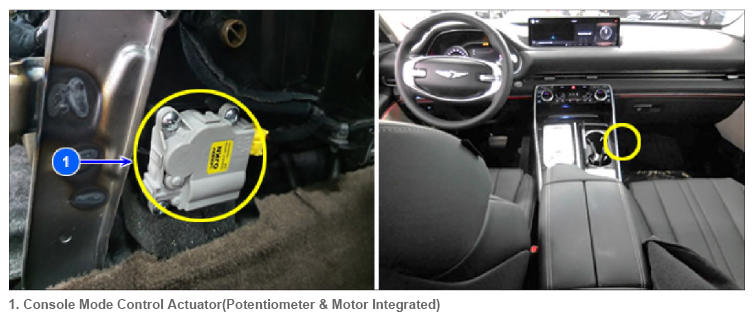

Console Mode Control Actuator (Potentiometer & Motor Integrated)
The Console Mode Control Actuator is mounted on the heater module. (In the case of 3 zones, this is the same. In the case of 3 zones +, it is mounted on the air conditioning sub module at the lower end of the armrest.)
When the switch is adjusted to control the mode in the control panel, the mode actuator rotates the mode door through the motor drive and emits air to the vent and bottom of the console.
