Repair Procedures: Installation
- Disconnect the negative (-) battery terminal.WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

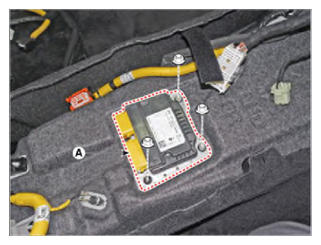

- Install the SRSCM (A).
Tightening torque:
10.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

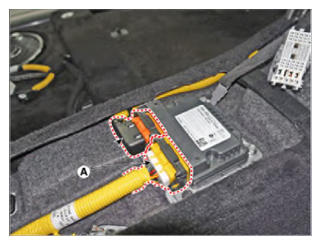

- Connect the SRSCM harness connector (A).
- Install the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")
- Reconnect the battery negative (-) terminal.
- After installing the Supplemental Restraints System Control Module (SRSCM), perform the variant coding and the zero point setting of longitudinal G sensor.NOTE:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about 6 seconds and then go off.
