Speed Sensor

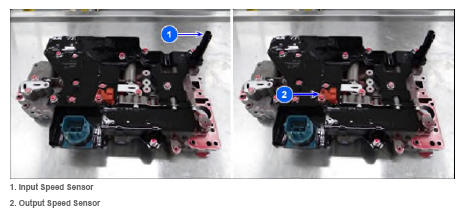

G14853398Courtesy of HYUNDAI MOTOR AMERICA

Input/output speed sensor is one body and installed in transmission. It's used hall sensor of an electric current type, and current is changed by magnetic variation. Each sensors are composite 2 pins and TCM supplied power to sensor and controlled by TCM.
