Diagnostic Flowchart

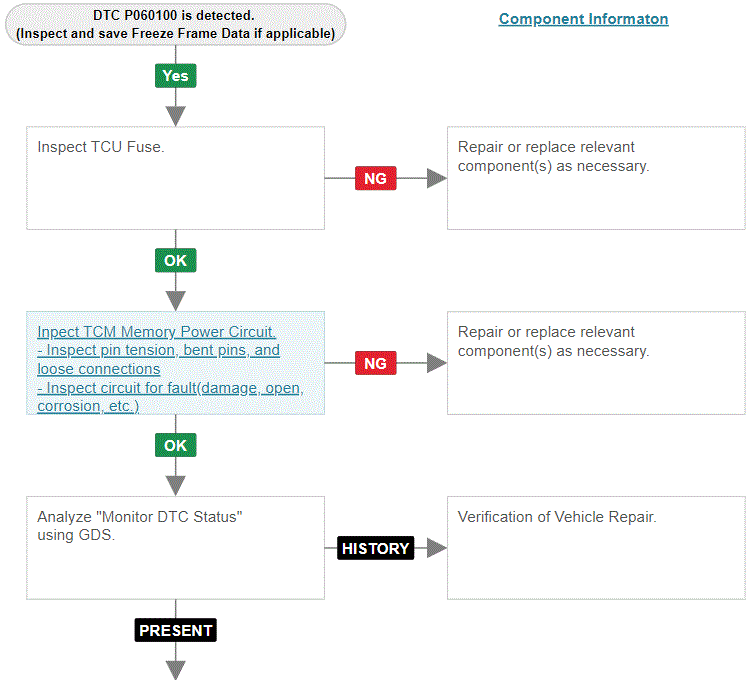

Fig 1: 1 of 2

Courtesy of HYUNDAI MOTOR AMERICA

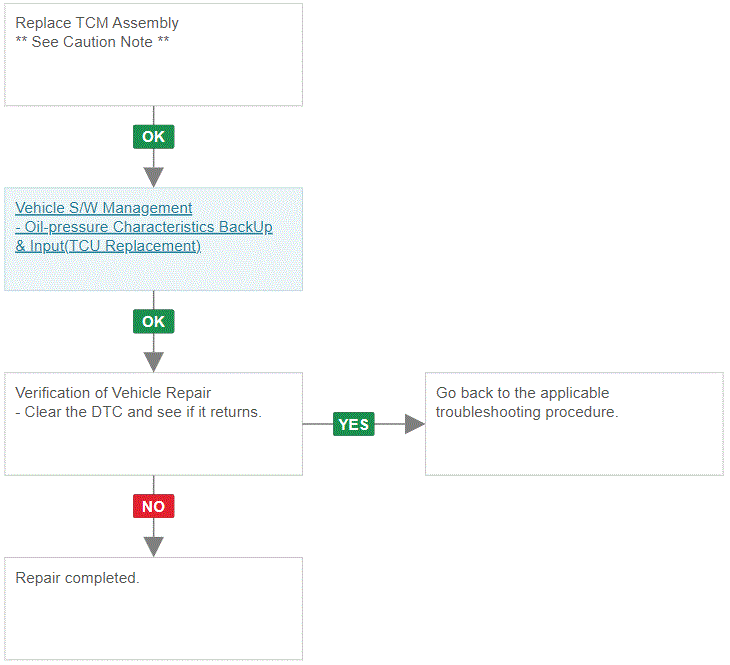

Fig 2: 2 of 2

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When the TCM is replaced, make sure to use the S/W Management Menu and perform all learned value options in the Engine and Transmission Sub-Menus.
