ETHERNET Switch Unit Diagnosis
>>
DTC B2656-00: Time-Out HUD
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart

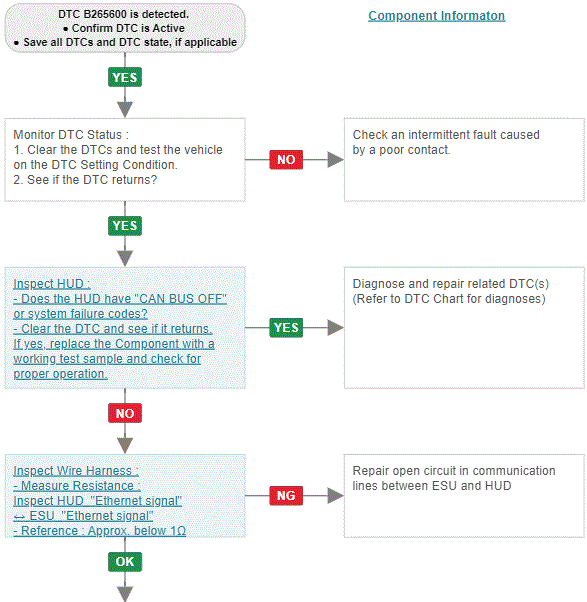

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

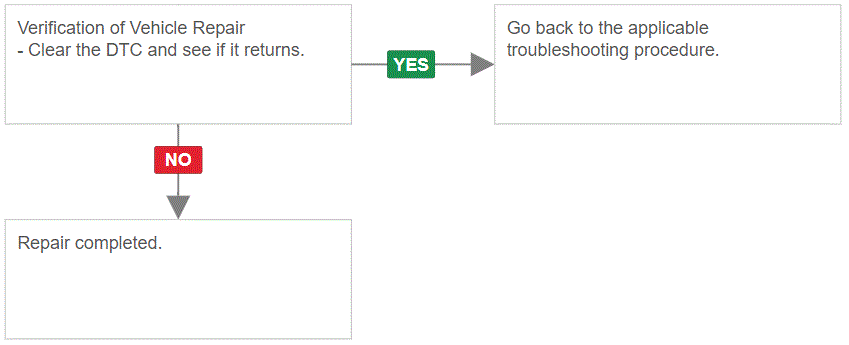

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
