Electric Motor Pump

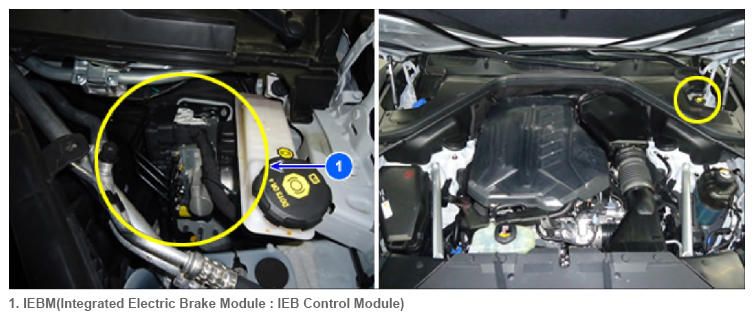

G14719390Courtesy of HYUNDAI MOTOR AMERICA

The IEBM (ESP) supplies battery power to the electric motor by way of a motor relay which is controlled by the Electronic Control Unit (ECU).

The electric motor pump supplies hydraulic pressure to all wheel brake calipers by operating the piston inside the pump.
