Engine Control System Diagnosis - 3.5L (1 Of 9)
>>
DTC P0037-00: Oxygen Sensor Heater Control Circuit Low Bank 1 Sensor 2
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

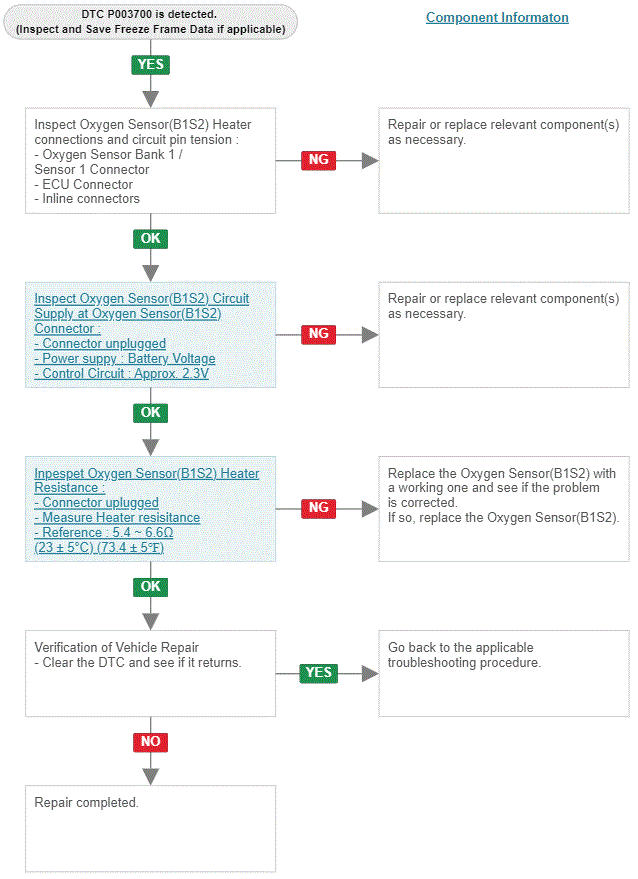

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
