Engine Control System Diagnosis - 3.5L (9 Of 9)
>>
DTC P24D6-00: EVAP System Pressure Sensor/Switch 'B' Circuit Range/Performance
>>
Troubleshooting
>>

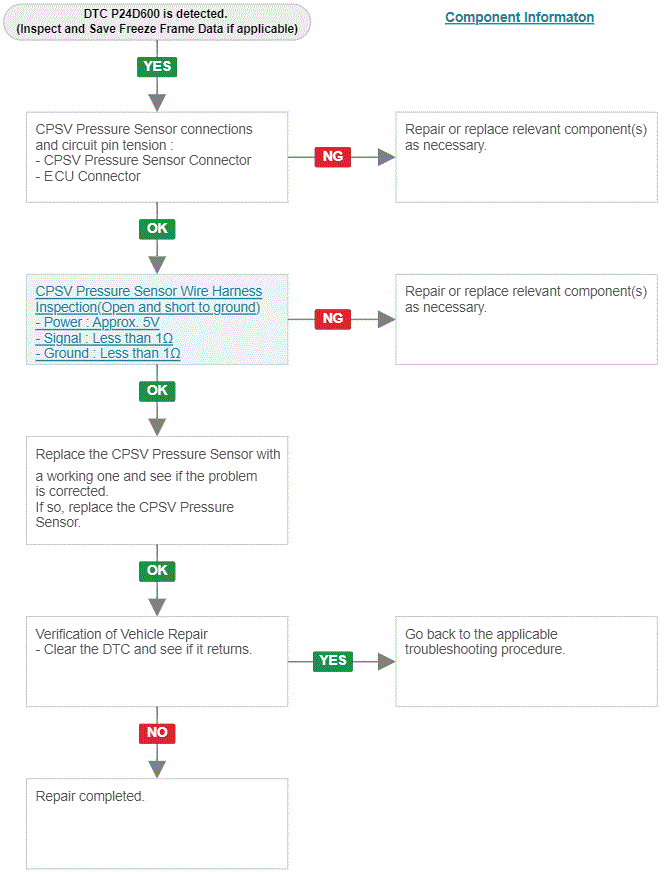

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
