Engine Control System Diagnosis - 3.5L (9 Of 9)
>>
DTC U0109-00: Lost Communication With Fuel Pump Control Module 'A'
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

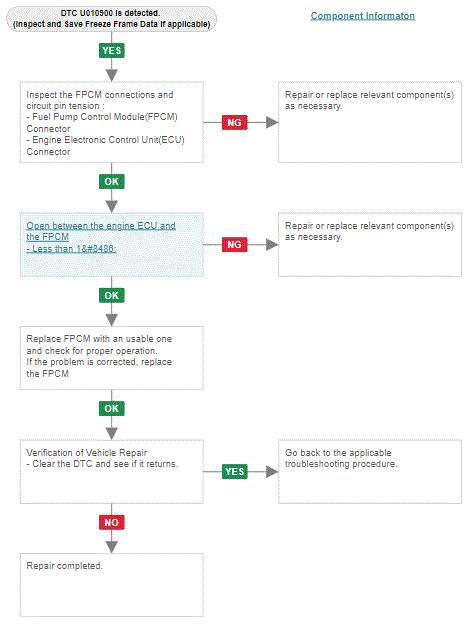

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
