Repair Procedures: Replacement

Information

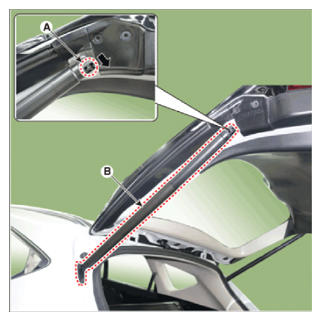

  1. Using a screwdriver, lift up slightly the socket clips (A) of both ends on the power liftgate drive unit (B), and then remove the power liftgate drive unit from the bracket.
    G14723139Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • Make sure the lift gate locks and opens properly and locks securely.
