Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Loosen the mounting bolts and then remove the upper console assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

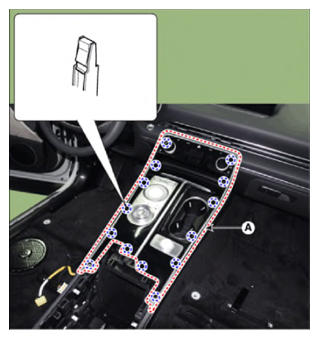

Using a flat-tip screwdriver or remover and remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

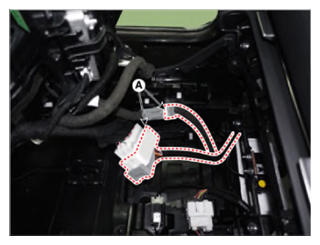

Press the lock pin and separate the connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

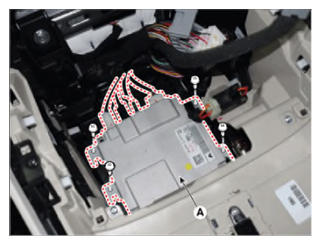

Loosen the mounting screws and then remove the DVRS unit (A).

Courtesy of HYUNDAI MOTOR AMERICA

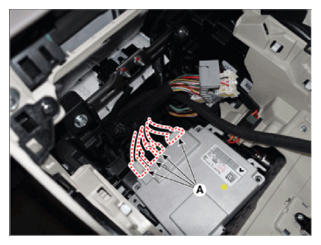

Press the lock pin and separate the DVRS connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

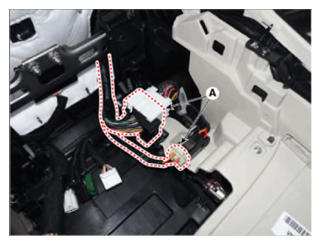

Press the lock pin and separate the console connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

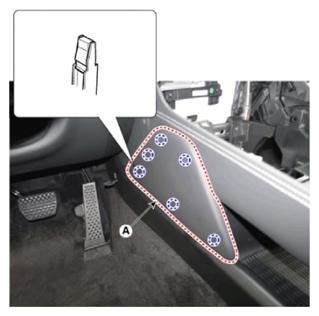

Using a remover and remove the console side cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

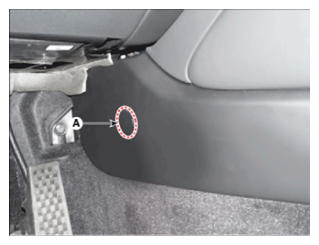

Remove the service hole (A).

Courtesy of HYUNDAI MOTOR AMERICA

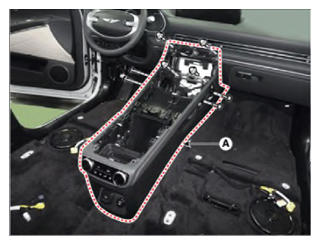

Loosen the mounting bolts and then remove the front console assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
