Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the integrated memory seat unit (A) after loosening mounting screws and then disconnect connectors.
    G14723849Courtesy of HYUNDAI MOTOR AMERICA

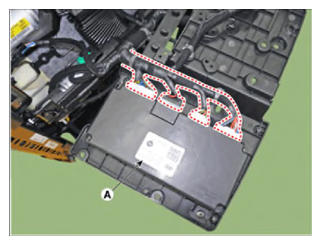

    G14723850Courtesy of HYUNDAI MOTOR AMERICA
