Repair Procedures: Installation

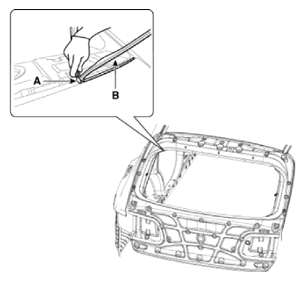

Using a cutting knife (A), remove the remaining sealant (B) on the body panel.

Courtesy of HYUNDAI MOTOR AMERICA
Apply the body primer to the bonding surface of body panel.
CAUTION:
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the liftgate window glass.
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of HYUNDAI MOTOR AMERICA
Apply the glass primer to the outer edge of liftgate window glass.
CAUTION:
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the liftgate window glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of HYUNDAI MOTOR AMERICA

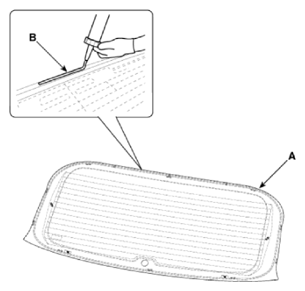

Using a sealant gun, apply the sealant (B) to the edge of rear liftgate window glass (A).

Courtesy of HYUNDAI MOTOR AMERICA

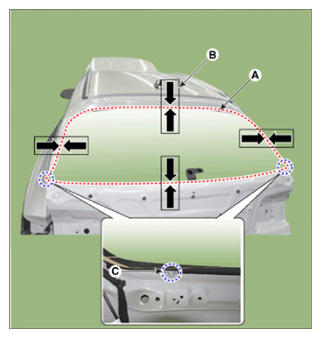

Using the glass holder, adjust the liftgate window glass (A) to fit the alignment marks (B) on the body and lightly push the liftgate window glass to make the edges fully seated on the bonding surface of body.
Information
- When installing the liftgate window glass (B), be sure to fit the protruding part (C) on the reverse side of the glass into the groove on the body frame.
Courtesy of HYUNDAI MOTOR AMERICA
To make sure that the applied sealant is completely hardened, leave the car on a flat surface for at least 3 to 4 hours after installing the liftgate window glass.
Information
- If driving the car is inevitable, drive at a low speed for at least 8 hours.
- Advise the driver to avoid aggressive driving or driving on rough roads for 2-3 days after installing the liftgate window glass.
Conduct a leak testing.
NOTE:
- The leak testing shall be conducted at least 4 hours after the liftgate window glass installation is completed.
- Do not directly spray the high-pressure water to the joint area.

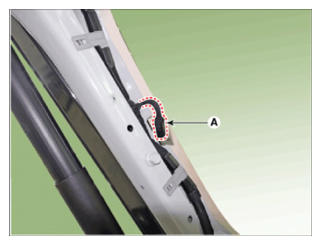

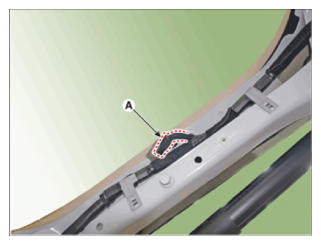

Connect the hot wire connector (A).
[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA
Install the rear wiper motor.
(Refer to Body Electrical System - "REAR WIPER MOTOR ")
Install the liftgate back panel.
(Refer to Liftgate - "LIFTGATE BACK PANEL ")
Install the rear spoiler.
(Refer to Body Side Molding - "REAR SPOILER ")
Install the liftgate trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
