Engine Control System Diagnosis - 3.5L (5 Of 9)
>>
DTC P0451-00: EVAP System Pressure Sensor/Switch Circuit Range/Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

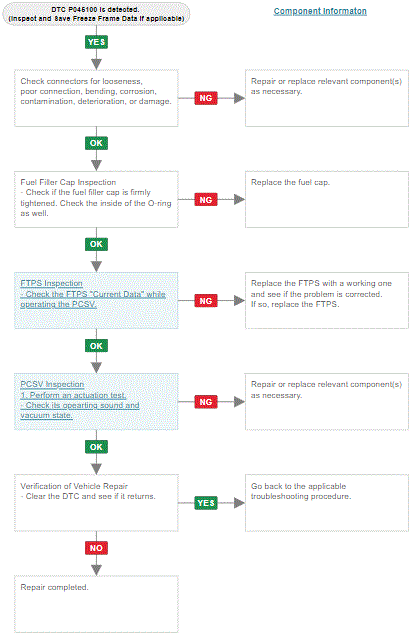

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
