Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the gasket debris on the top of cylinder block using a scraper.
- Clean the cylinder block thoroughly with a soft brush and solvent.
- Measure the flatness of the top surface of cylinder block.

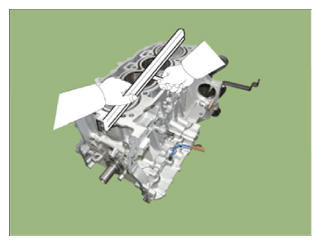

Measure the flatness of the surface in contact with the cylinder head gasket using the precise square ruler and feeler gauge.
Flatness of cylinder block gasket surface:
Specified value: 0.05 mm (0.00197 in.) or less (0.02 mm (0.00197 in.) or less-100 mm (3.93701 in.) x 100 mm (3.93701 in.))
- Visually inspect the inside of cylinder bore for scratches, etc., and replace the cylinder block if noticeable scratches are found.

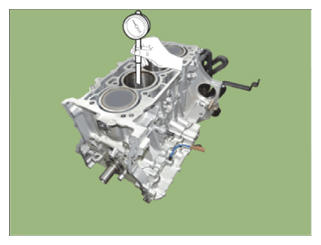

- Measure the cylinder bore inner diameter in the axial and axial orthogonal directions using a cylinder bore gauge.
Cylinder bore diameter:
88.50 - 88.53 mm (3.48425 - 3.48543 in.)
