Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

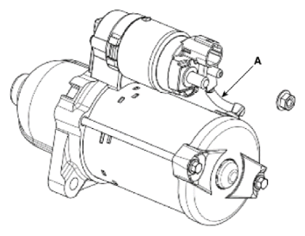

Disconnect the M-terminal (A) on the magnet switch assembly.

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the screws (A), detach the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the through bolts (A) and then remove the rear cap (B), stop washer (C), adjust washer (D).

Courtesy of HYUNDAI MOTOR AMERICA

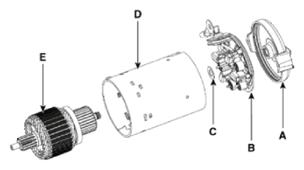

Disconnect the rear bracket (A), brush holder (B), adjust washer (C), yoke (D), amateur (E).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the gasket sheet (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the lever rest (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the reducer assembly (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA
Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA

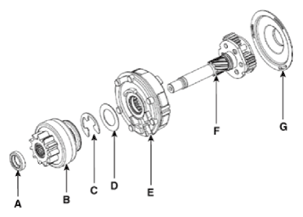

Disconnect the stopper (A), overrunning clutch (B), stopper (C), stop washer (D), ring gear (E), drive shaft assembly (F), gasket seat (G).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).
Reassembly is the reverse of disassembly.
