Engine radiator

WARNING: This page is about a different variant/trim than selected.

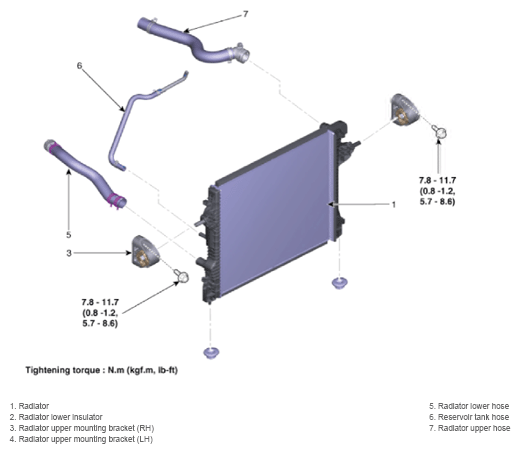

Fig 1: Engine Radiator Components Location With Torque Specification
G14720955Courtesy of HYUNDAI MOTOR AMERICA
