Longitudinal G Sensor Calibration

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.

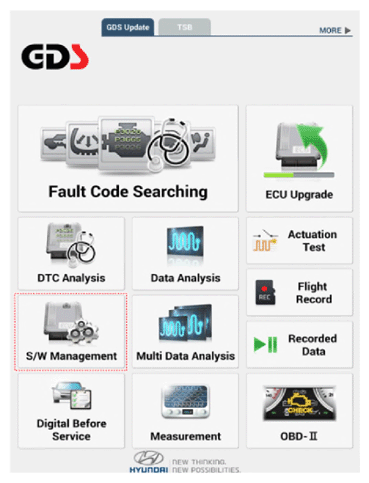

  2. Select the 'S/W Management' and 'Car model'.
    G14722807Courtesy of HYUNDAI MOTOR AMERICA

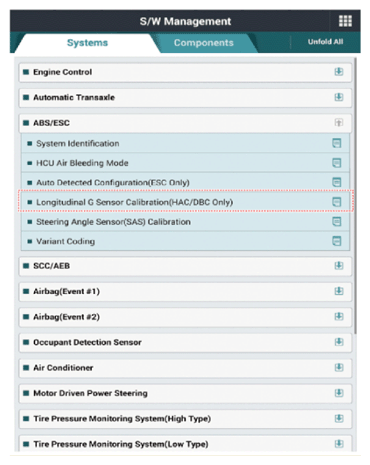

  3. Select "Longitudinal G Sensor Calibration".
    G14722808Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • You must remove or install the SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
