Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

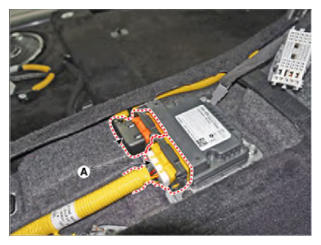

  3. Pull up the lock of the SRSCM connector to disconnect the connector.
    G14722801Courtesy of HYUNDAI MOTOR AMERICA

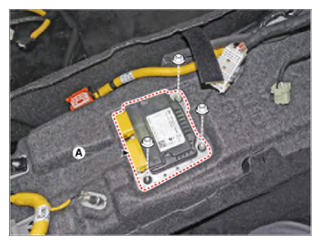

  4. Loosen the mounting nuts, remove the SRSCM (A).
    G14722802Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to damage the SRSCM connector.
