Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).
- Ignition "On".

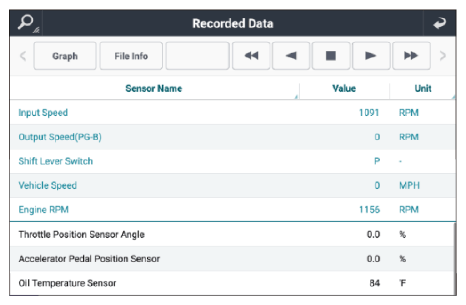

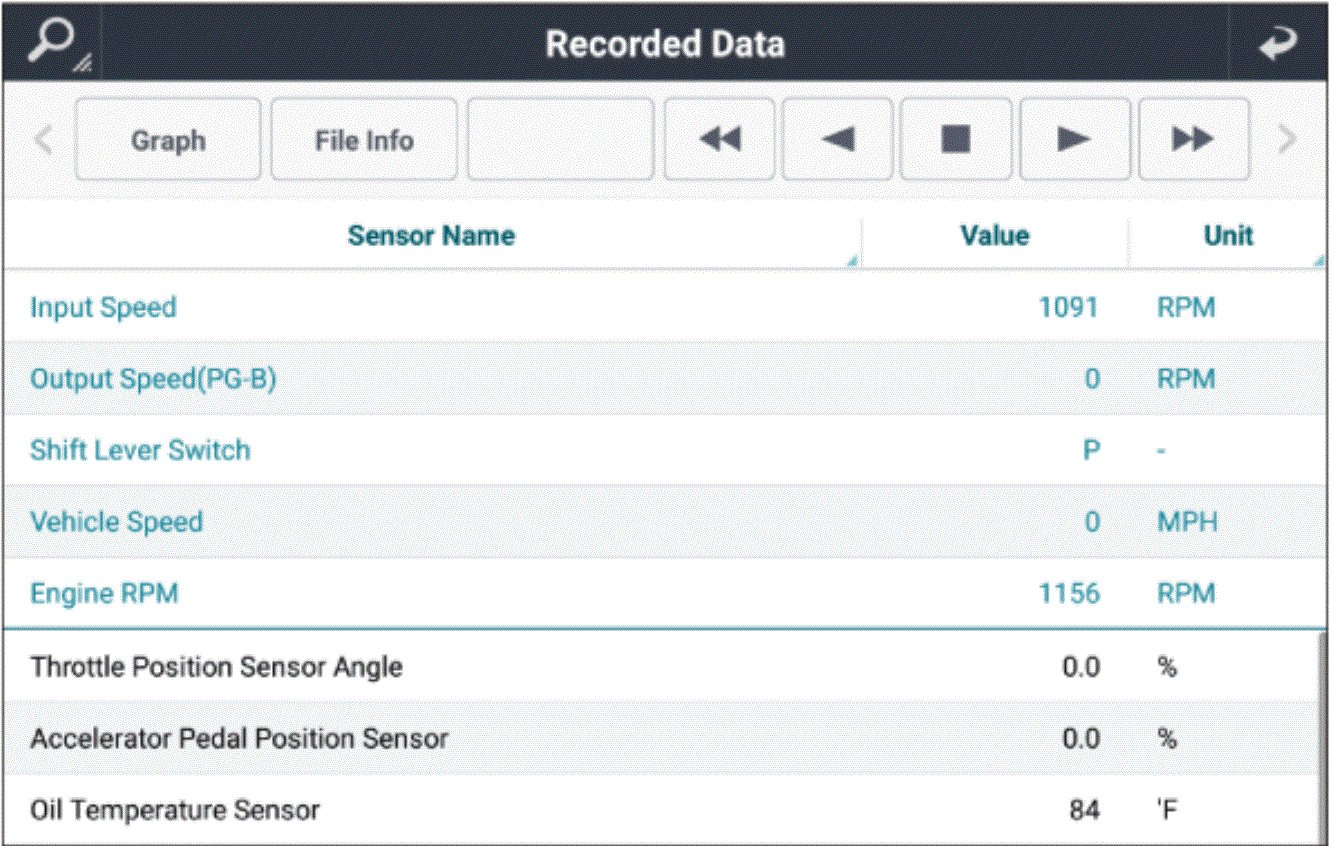

- Select and monitor from Current Data:
- Input Speed
- Output Speed (PG-B)
- Shift Lever switch
- Vehicle Speed
- Engine RPM

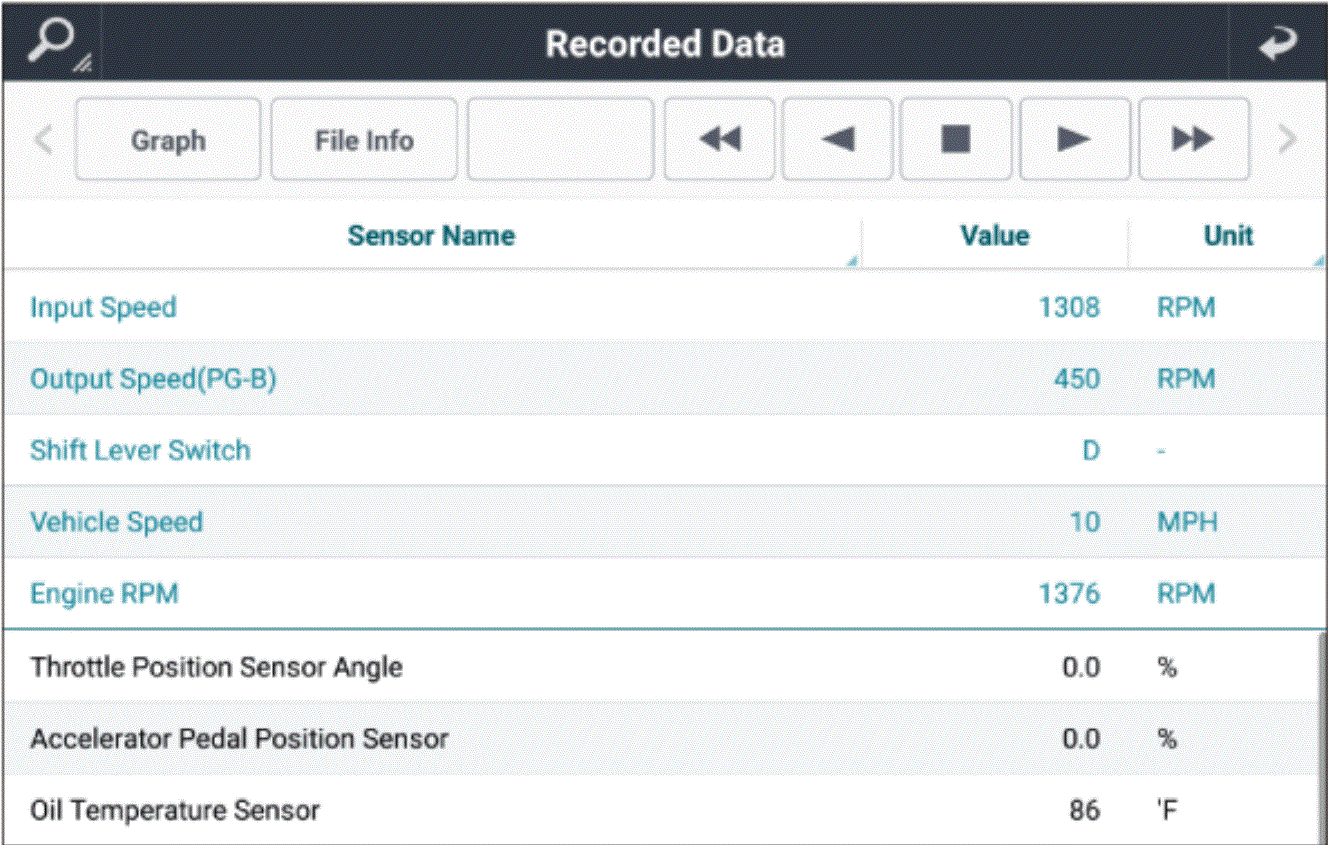

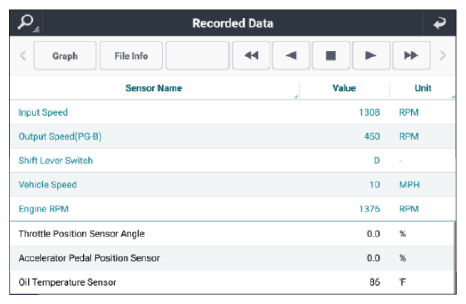

- Test Drive vehicle and monitor Input Speed Sensor Data.
Specification:
Input Speed increase gradually in relation to Engine Speed
