Components Location

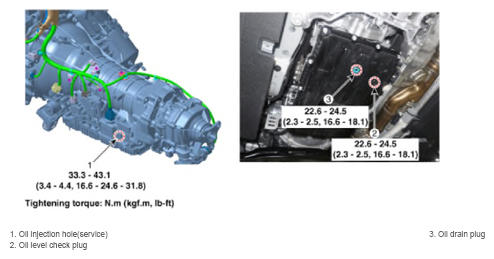

Fig 1: ATF Fluid Drain, Fill And Level Check Plugs Location With Torque Specifications
G14728935Courtesy of HYUNDAI MOTOR AMERICA
