Repair Procedures: Removal

  1. Turn the ignition switch OFF.

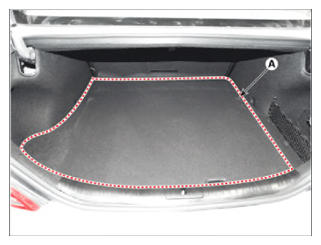

  2. Remove the luggage covering (A).
    G15586554

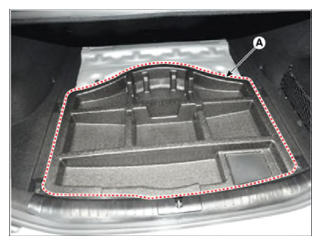

  3. Remove the luggage center tray (A).
    G15586555

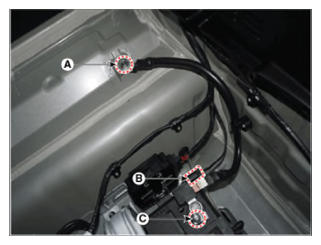

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G15586556
