Terminal Function

200W

G15586930

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Description
1	Battery power (B+) input
2	-
3	-
4	Battery power (B+) output
5	-
6	IGN1 input
7	ISG signal input
8	ACC input
9	ACC output
10	Ground
11	-

400W

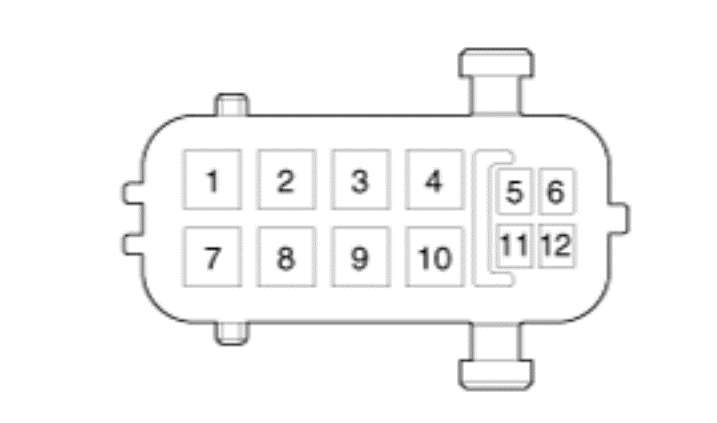

G15586931

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Description
1	Battery power (B+) input
2	-
3	Battery power (B+) output
4	Ground
5	IGN1 input
6	ISG signal input
7	Battery power (B+) input
8	Battery power (B+) output
9	Battery power (B+) output
10	Ground
11	ACC output
12	ACC input
