Repair Procedures: Removal
NOTE:
- When DTC for solenoid valve is ON, replace according to the following procedure:
- Automatic transmission is composed of fine components. Use special caution when assembling/disassembling to avoid any damage of the component.
- Maintain clean condition so that foreign substance does not get into the automatic transmission.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.
- ATF is reusable. Store it in a clean 10 liter beaker.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

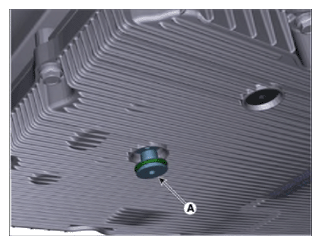

- Remove the ATF drain plug (A) and then allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
22.6 - 24.5 N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb-ft)
NOTE:- ATF can be reused. Collect it in a clean beaker.
- The existing ATF drain plug o-ring must be replaced with a new one. (Do not reuse it.)

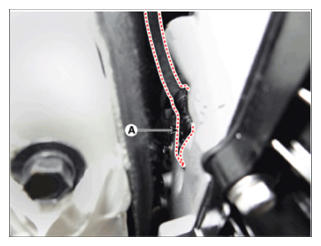

- Disconnect the E-module connector (A).
- Remove the valve body cover.

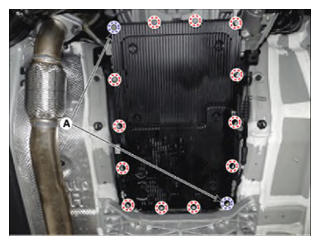

- Loosen the all valve body mounting bolts except for the bolts (A) in the corner.
Tightening torque:
13.7 - 15.7 N.m (1.4 - 1.6 kgf.m, 10.1 - 11.6 lb-ft)

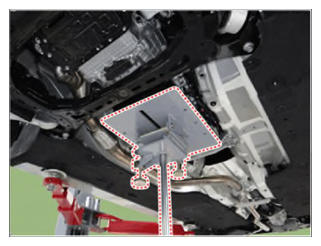

- Loosen the two bolts in the corner after supporting the valve body cover on a jack and then remove the valve body cover by lowering the jack slowly.
CAUTION:- Be careful when removing the valve body cover because the remaining ATF remains in the valve body cover.

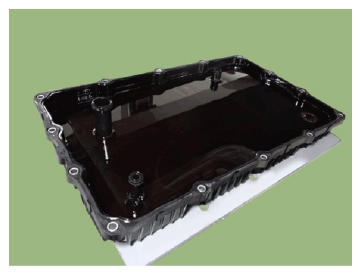

- When reinstalling the valve body cover, replace the gasket (A) with a new product.
- After installing the valve body cover, make sure to check the oil leakage at the connection area with the engine ON.
- Loosen the all valve body mounting bolts except for the bolts (A) in the corner.

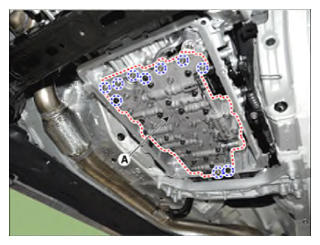

- Remove the valve body assembly (A) after loosening the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

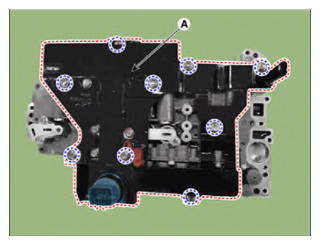

- Remove the E-module (A) after loosening the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

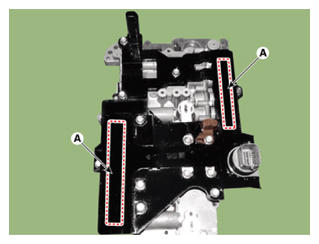

NOTE:- When installing, after mounting the E-module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.
