Repair Procedures: Removal

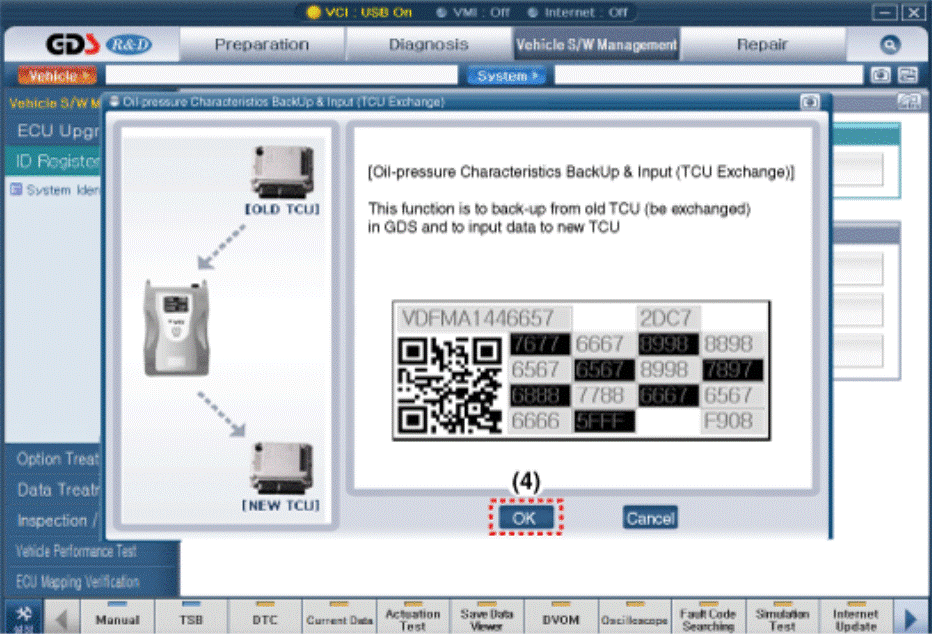

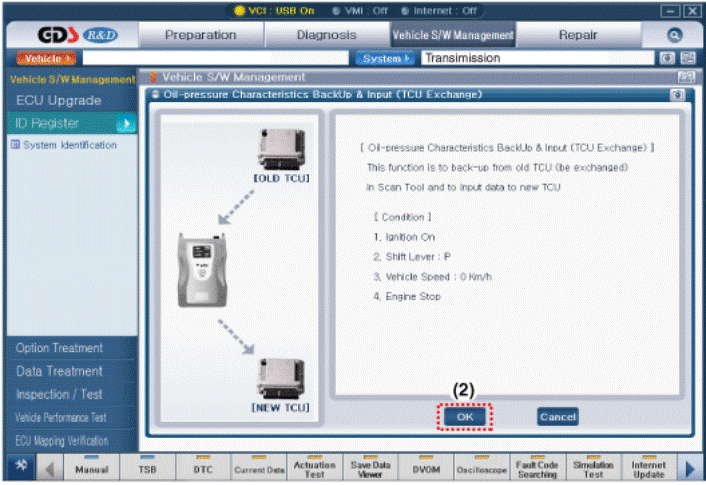

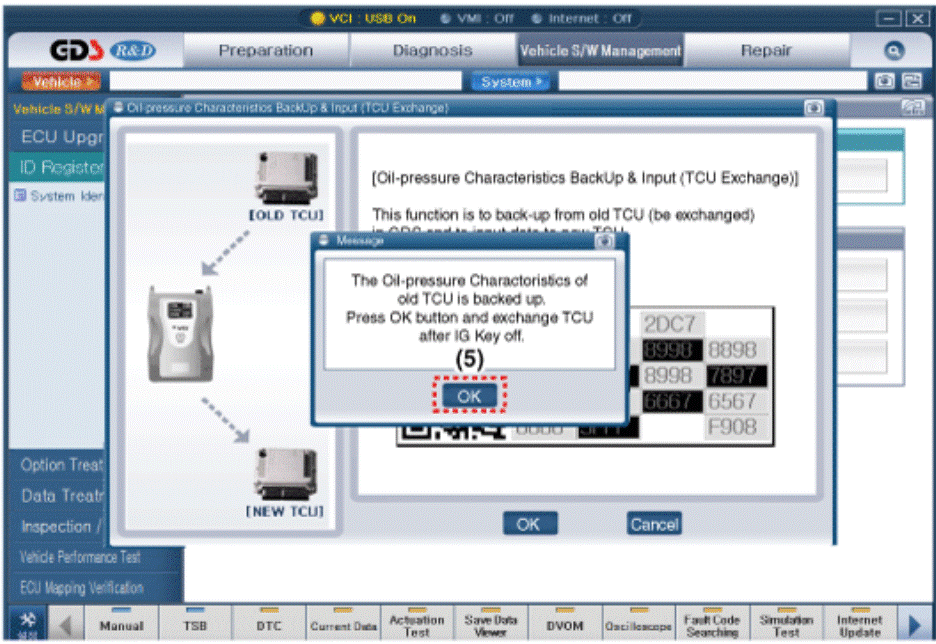

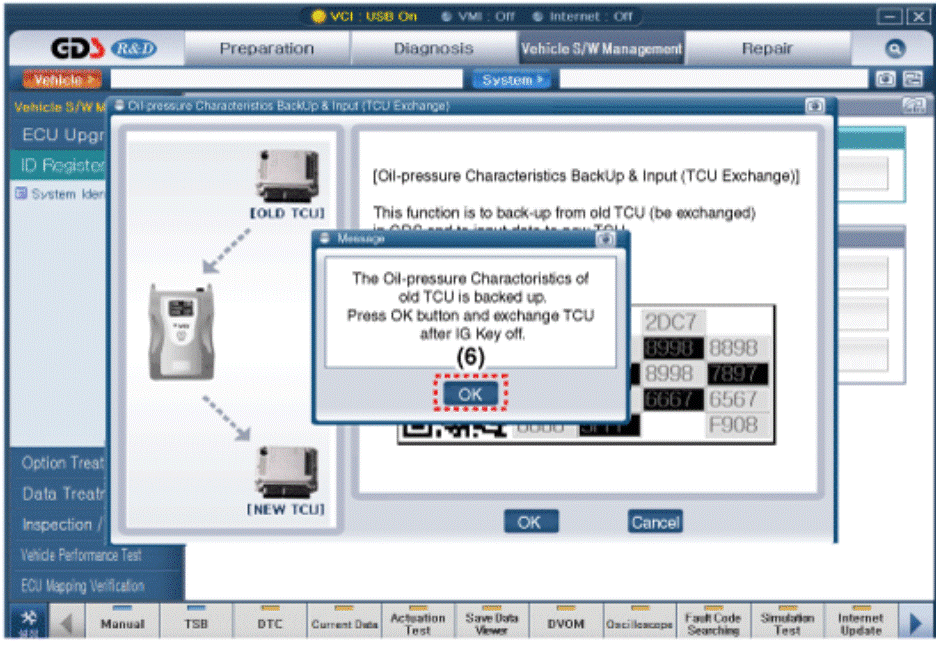

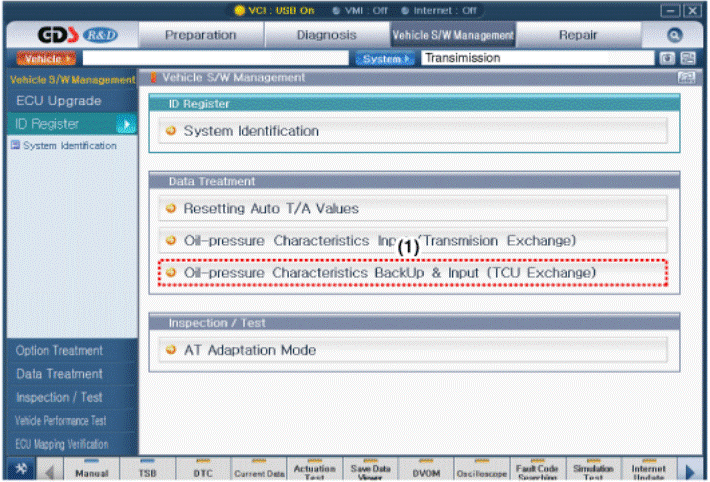

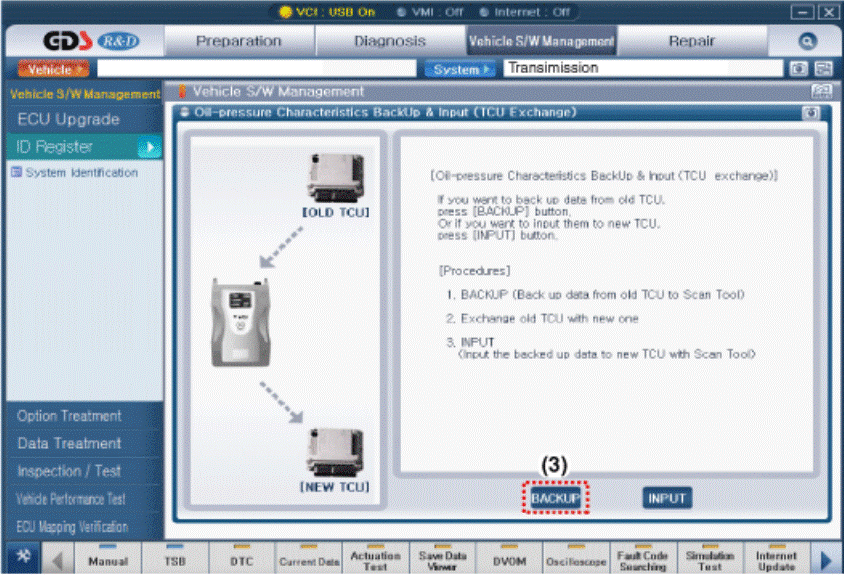

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the TCM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

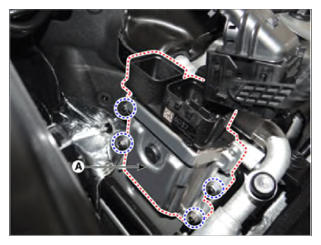

Remove the TCM (A) after loosening the nuts.

Courtesy of HYUNDAI MOTOR AMERICA
