Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front wheel guard LH.

    (Refer to Body - "BODY SIDE MOLDING ")

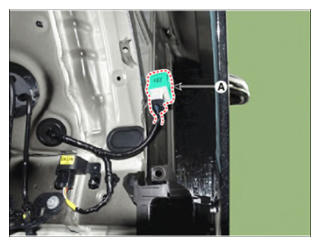

  3. Disconnect the connector and then remove the buzzer (A).
    G15589767Courtesy of HYUNDAI MOTOR AMERICA
