Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

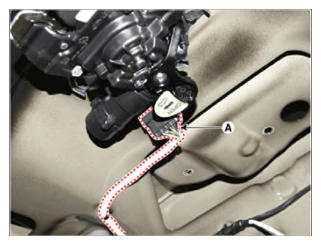

  3. Disconnect the trunk lid latch connector (A).
    G15590093Courtesy of HYUNDAI MOTOR AMERICA

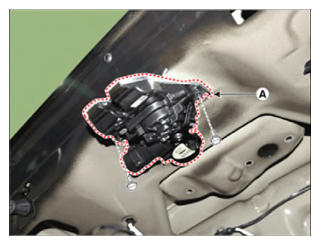

  4. Loosen the mounting bolts, remove the trunk lid latch (A).
    G15590094Courtesy of HYUNDAI MOTOR AMERICA
