Genesis
>>
2022
>>
G80 2.5T Advanced, AWD
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P00D2-00: HO2S Heater Control Circuit Range/Performance Bank 1 Sensor 2
>>
Troubleshooting
>>

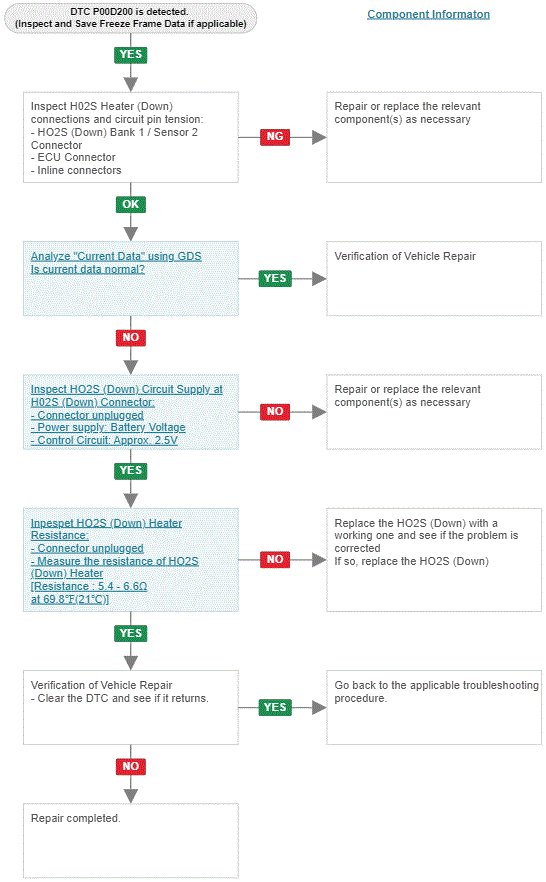

Diagnostic Flow-chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
