Repair Procedures: Removal

NOTE:

When DTC for solenoid valve is ON, replace according to the following procedure:
Automatic transmission is composed offline components. Use special caution when assembling/disassembling to avoid any damage of the component.
Maintain clean condition so that foreign substance does not get into the automatic transmission.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.
ATF is reusable. Store it in a clean 10 liter beaker.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the valve body cover (oil filter).
(Refer to Hydraulic System - "VALVE BODY COVER (OIL FILTER) ")

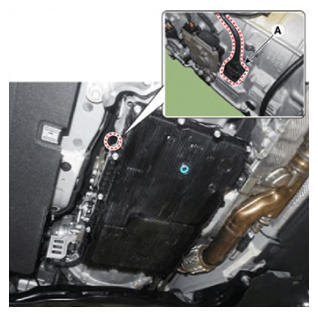

Disconnect the E-module connector.

Courtesy of HYUNDAI MOTOR AMERICA

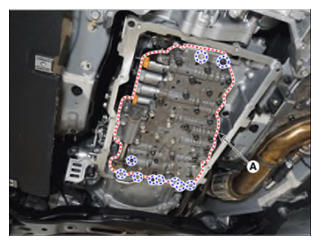

Remove the valve body assembly (A) after loosening the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

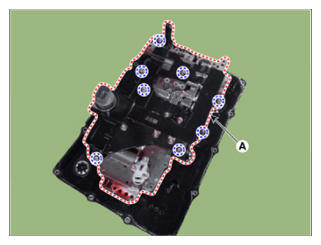

Remove the E-module (A) after loosening the mounting bolts.

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

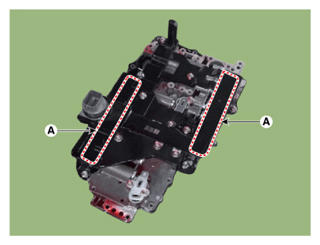

NOTE:

When installing, after mounting the E-module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.

Courtesy of HYUNDAI MOTOR AMERICA
