Repair Procedures: Removal
CAUTION:
- When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
- Automatic transmission is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
- Maintain clean condition so that foreign substance does not get into the automatic transmission.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.
- Automatic transmission fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the undercover. (Refer to ENGINE ROOM UNDER COVER )

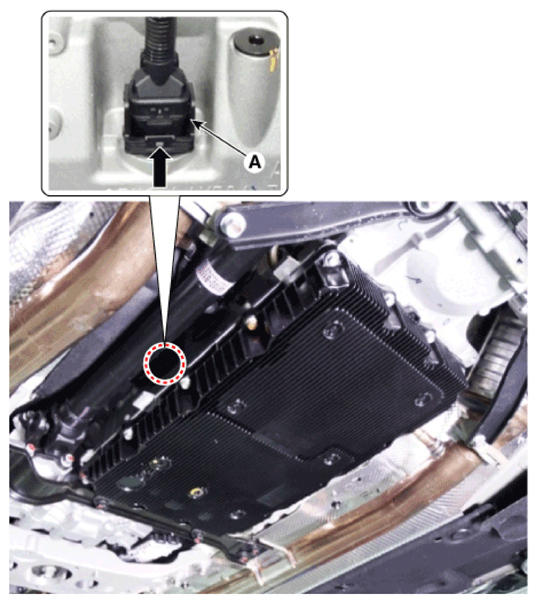

- Remove the E module connector (A).

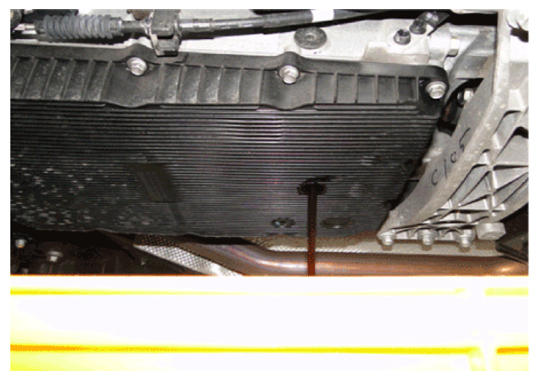

- Perform automatic transmission fluid (ATF) drain and connect the drain plug.
Tightening torque:
22.6 - 24.5N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb-ft)

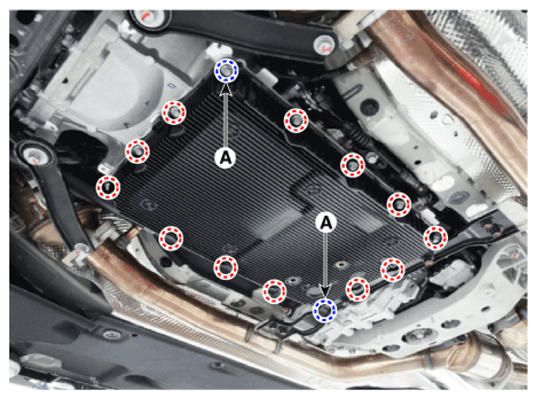

- Unscrew all oil pan mounting bolts except for the edge bolts (A).
Tightening torque:
9.8 - 11.8N.m (1.0 - 1.2 kgf.m, 7.2 - 8.2 lb-ft)

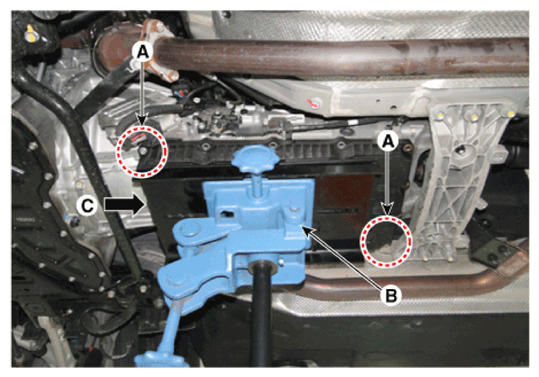

- Fix it to the bottom of the oil pan using a jack (B) and unscrew two edge bolts (A). Then, remove the oil pan.NOTE:
- Disconnect the oil pan (C) on the oil filter side and remove it.

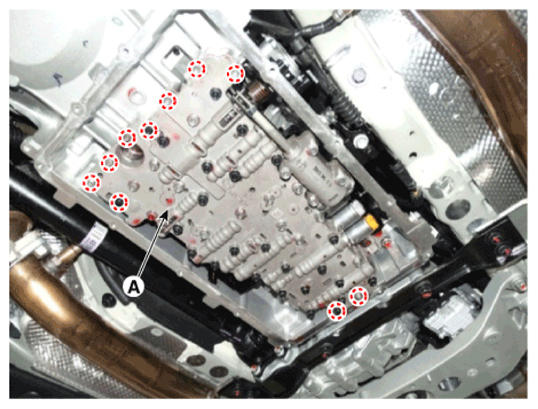

- Unscrew the bolts and remove the valve body assembly (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Place the valve body assembly in the oil pan.

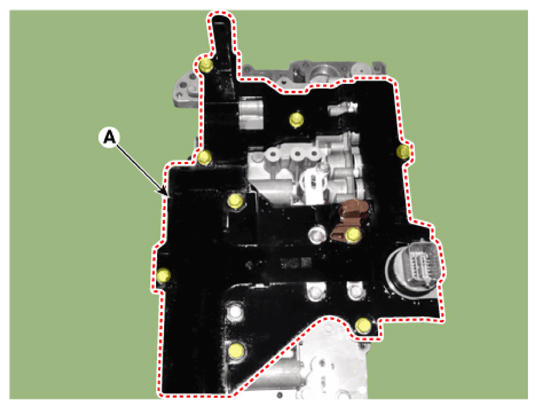

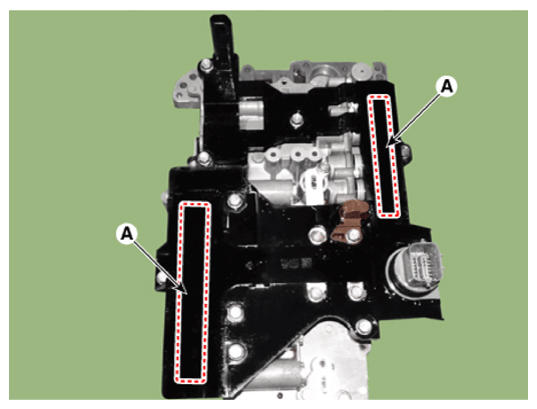

- Unscrew the bolts and remove the E module (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

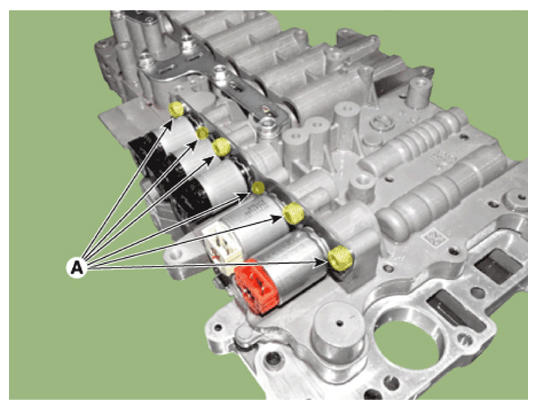

- Remove the bolts (A) of the indirect control solenoid valve support bracket.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.2 lb-ft)

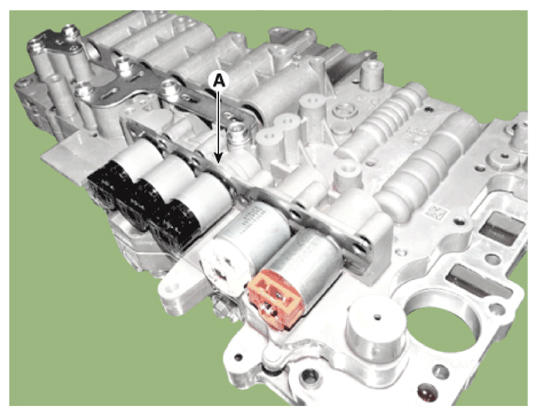

- Remove the indirect control solenoid valve support bracket (A).

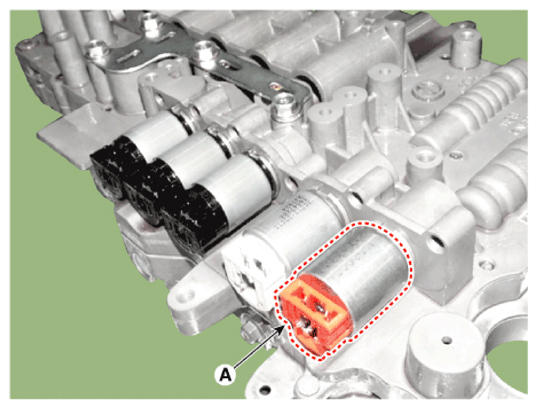

- Remove the line pressure control solenoid valve (A).
