Clock Spring
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the steering wheel column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

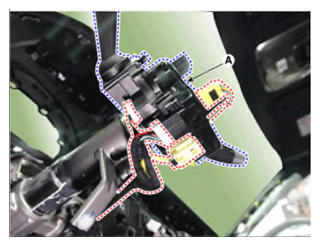

- Remove the multifunction switch assembly (A) after disconnecting the clock spring wiring harness and multifunction switch harness connector.
