Monitor Current Data
- Ignition "OFF".
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON".
- Warm up the engine to normal operating temperature.
- Monitor following parameters in "Current Data" with GDS.

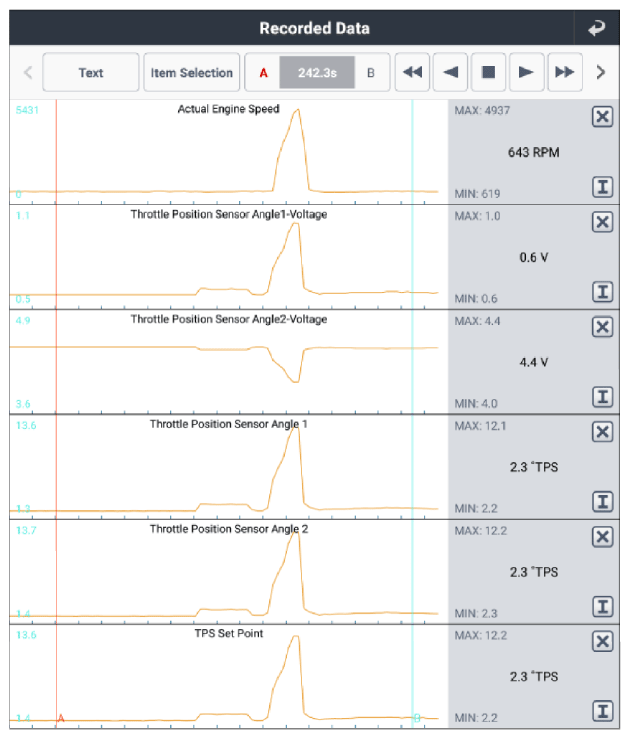

Specification: Refer to figure below P012200 Throttle Position Sensor 1 Sig Circuit Low Input
