Downstream O2 Sensor Signal Inspection

Item Normal Value Prerequisite Condition Probe (+) Probe (-)
Signal circuit voltage Refer to below figure
G14755059Courtesy of HYUNDAI MOTOR AMERICA
G14755060Courtesy of HYUNDAI MOTOR AMERICA
G14755061Courtesy of HYUNDAI MOTOR AMERICA
 Signal circuit terminal Ground circuit terminal

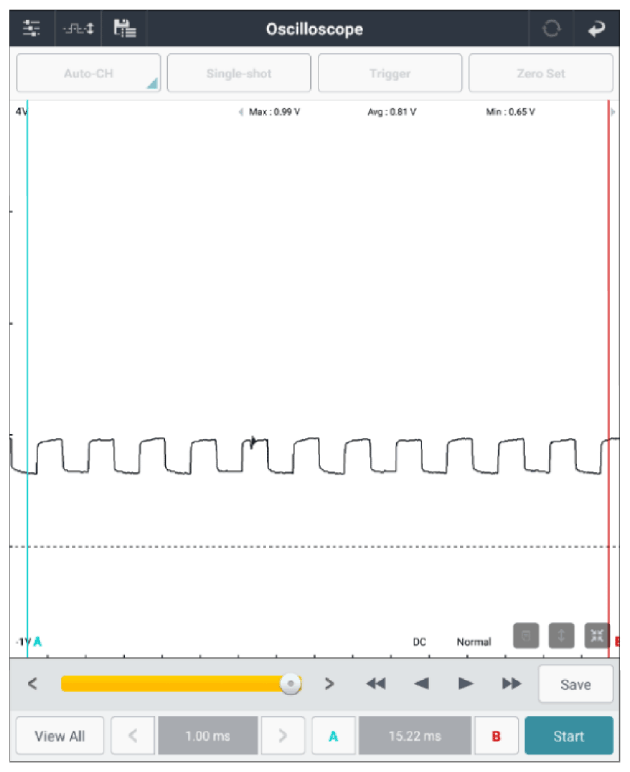

G14755062Courtesy of HYUNDAI MOTOR AMERICA
