Genesis
>>
2022
>>
GV70 2.5T Select
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (6 Of 6)
>>
DTC U0456-00: Invalid Data Received From Coolant Temperature Control Module
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

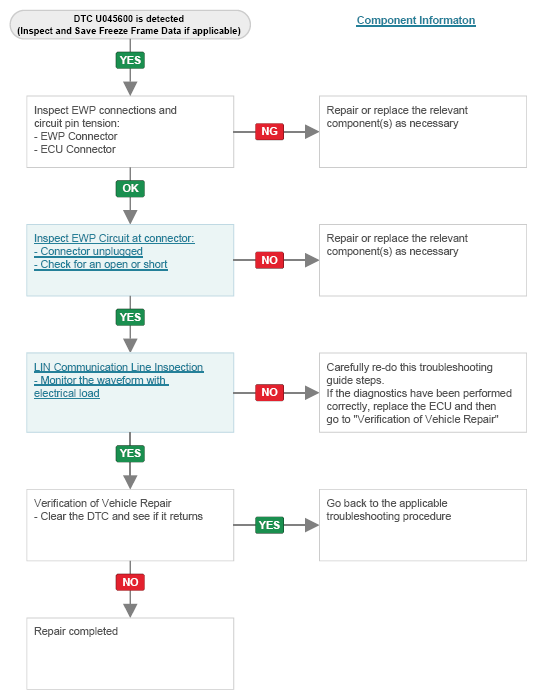

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
