Repair Procedures: Replacement
- Replace the oil filter.

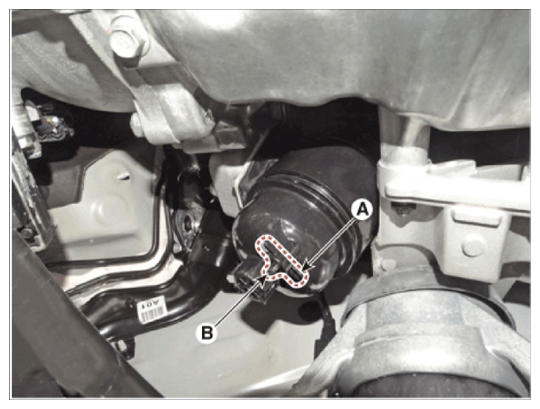

- Remove the fixing pin (A) at the bottom of the oil filter cap and loosen the drain bolt (B) to drain the oil inside the filter.
- Remove the oil filter cap (A).

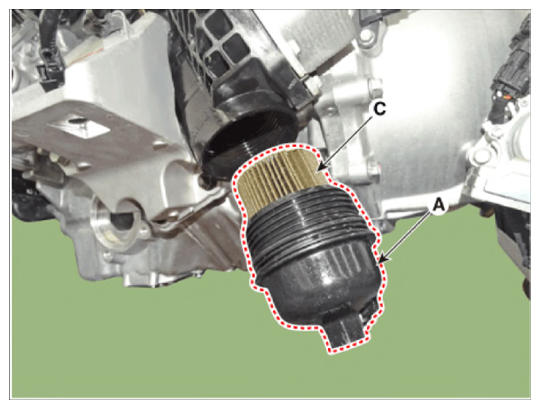

- Install the new oil filter element (C) and then install the oil filter cap (A).
Lightly screw the oil filter cap into place, and tighten it until the O-ring (B) contacts the seat. Finally tighten it again by specified tightening torque.
Tightening torque:
25.5 - 30.0 N.m (2.6 - 3.1 kgf.m, 18.8 - 22.4 lb-ft)
NOTE:- Inspect the threads and O-ring of the filter cap.
- Replace the O-ring of the oil filter cap with a new one.
- Wipe off the seat on the oil filter cap, then apply a light coat of oil to the oil filter cap O-ring.
- Before installing new engine oil filter element, be sure to clean residual oil inside of the oil filter housing and oil filter cap and on the threads of the oil filter cap.
- If not, residual oil will come out of the oil filter housing and cap and it may be mistaken as an oil leak.
- If the above instruction is not complied with, the oil remaining on the oil filter cap thread and the inside of housing may seep out from the oil filter cap and the housing mounting surface.
- Replace the drain bolt (B) with a new one and then tighten it to the specified torque and then install the fixing pin (A).
Tightening torque:
4.0 - 5.0 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb-ft)
- Remove the fixing pin (A) at the bottom of the oil filter cap and loosen the drain bolt (B) to drain the oil inside the filter.
- Fill engine oil.

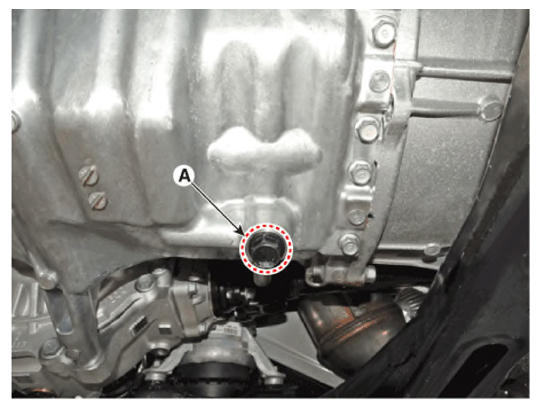

- Install the oil drain plug (A) together with the new gasket.
Tightening torque:
34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb-ft)
- Fill new engine oil through the oil inlet.
Before filling engine oil, remove the oil level gauge.
Selection Of Engine Oil
Specification : API SN PLUS/SP or ILSAC GF-6
Allowed oil SAE viscosity : Refer to the recommended SAE viscosity number
Capacity
Total: 7.4 L (1.95 U.S.gal., 7.82 U.S.qt., 6.51 Imp.qt.)
Oil pan: 5.8L (1.53 U.S.gal., 6.13 U.S.qt., 5.10 Imp.qt.)
Oil change (Including oil filter): 6.2L (1.64 U.S.gal., 6.55 U.S.qt., 5.45 Imp.qt.)
Information
- First fill the half of total capacity and then fill the other half after approximate 1 minute has elapsed.

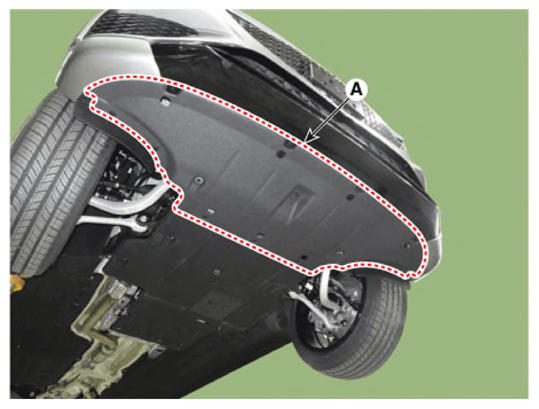

- Install the engine room font undercover (A).

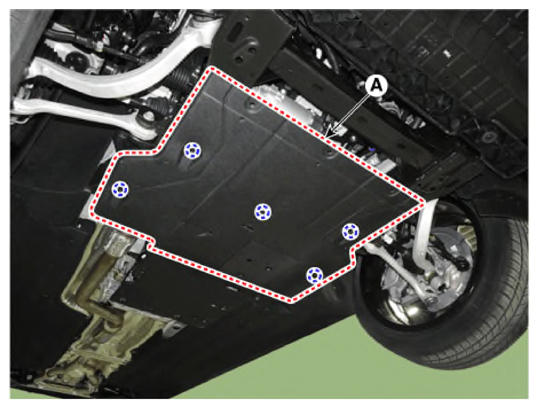

- Install the engine room rear undercover (A).

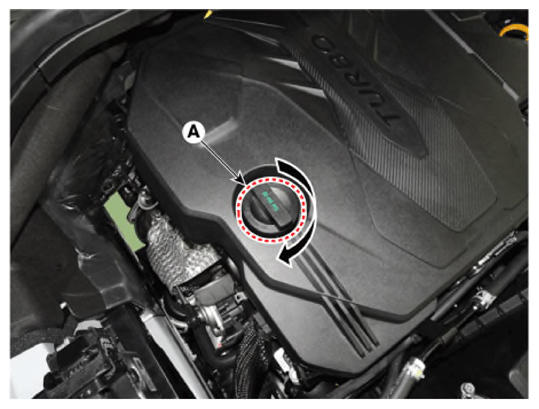

- Install the oil filler cap (A).
- Install the oil drain plug (A) together with the new gasket.
- Start the engine and check that no oil is leaking from the drain plug or oil filter.
- Recheck the engine oil level.
