Parking Switch: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the rear propeller shaft.

    (Refer to Driveshaft and axle - "PROPELLER SHAFT ")

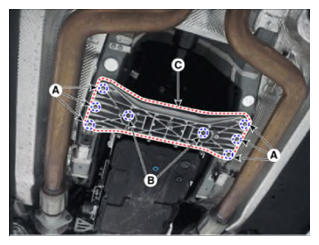

  3. Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).

    [2WD]

    G14764306Courtesy of HYUNDAI MOTOR AMERICA

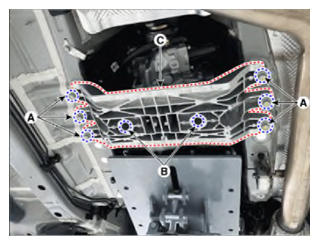

    [4WD]

    G14764307Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • support the transmission solenoid valve body cover using a jack.

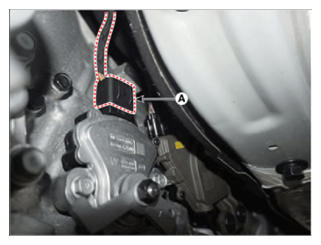

  4. Disconnect the parking switch connector (A).
    G14764308Courtesy of HYUNDAI MOTOR AMERICA

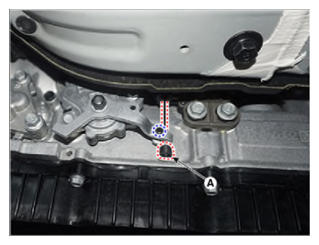

  5. Loosen the fastener and then separate the parking release cable (A).
    G14764309Courtesy of HYUNDAI MOTOR AMERICA

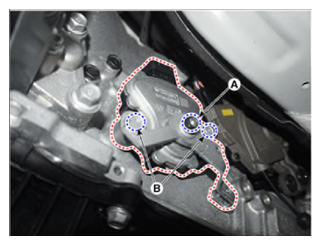

  6. Loosen the nut (A) and the bolts (B) and then removing the parking switch.
    G14764310Courtesy of HYUNDAI MOTOR AMERICA
