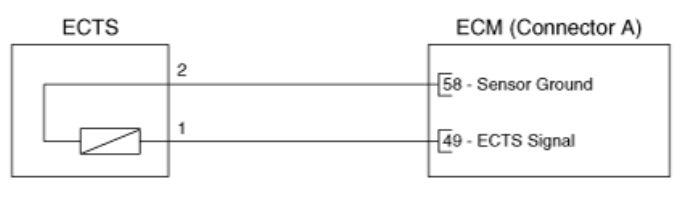

Engine Coolant Temperature Sensor (ECTS) - Integrated Flow Control Valve Side: Notes

WARNING: This page is about a different variant/trim than selected.
G14728658Courtesy of HYUNDAI MOTOR AMERICA
